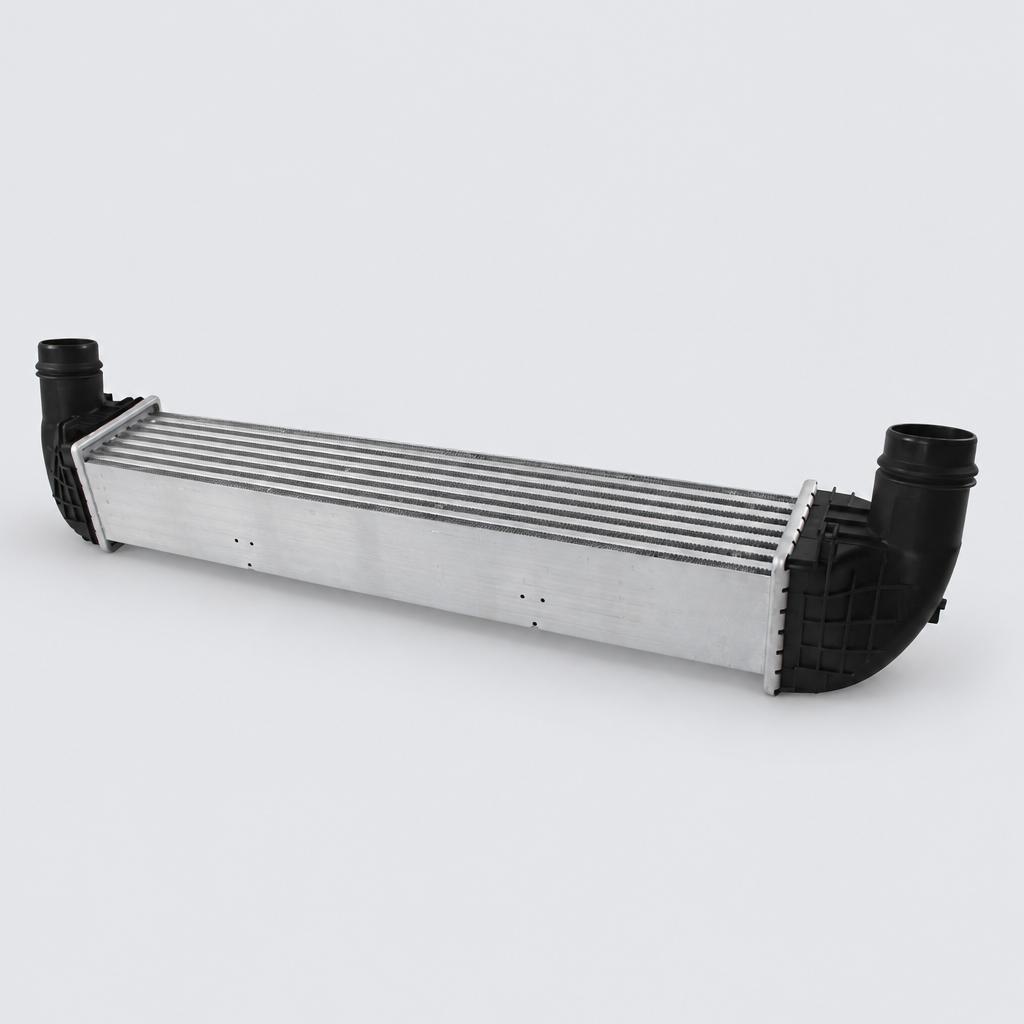

Intercooler Charge Air Cooler compatible with Chevrolet Cruze 2016-2019

Intercooler Charge Air Cooler for Chevrolet Cruze
No reviews yet
Radiators & Cooling
For Chevrolet Cruze
Fits model years 2016–2019
Skill levelAdvanced · mechanical experience needed

A replacement intercooler charge air cooler for efficient heat transfer.

Key facts

Part type
Intercooler Charge Air Cooler
Type
Aftermarket replacement

Compatibility matrix

Only models verified by our team are listed
This one part fits every model listed below. No need to open each model, just add this item to your cart.
Parts forModelThis part
ChevroletChevrolet Cruze Fits

Only the models listed above have a confirmed catalog fit. If yours is absent, compatibility is unknown, not ruled out. Compare the exact model identifier and any published dimensions or connectors before ordering.

Where to find your model number

  • Chevrolet: Use your 17-character VIN. It's on the driver-side dashboard at the base of the windshield and on the driver's door jamb sticker. The year is in the 10th character. Also check your registration or the owner's manual.

General manufacturer guidance: exact label position can vary by model.

Intercooler Charge Air Cooler specifications

Material
Aluminum / Plastic
Color
Silver
Core Height
23.62 in
Core Length
4.25 in
Core Thickness
3.15 in
Inlet Diameter
2.2 in
Outlet Diameter
2.2 in
Weight
3.73kg

Installation guide - Replacing a cooling system part

General guidance for this part type - always follow your device manual
Tools
  • Drain pan
  • Pliers for hose clamps
  • Correct coolant for your vehicle
Tips
  • This is an advanced job: follow your vehicle's service manual, or have a qualified mechanic fit it.
  • Recheck the coolant level after the first few drives as trapped air works out.
  1. 1Make it safe. Engine off and completely cold. Never open the radiator or reservoir cap on a hot engine.
  2. 2Drain the coolant. Open the drain plug or remove the lower hose into a drain pan, and keep coolant away from pets.
  3. 3Remove the old part. Undo the hose clamps and bolts, noting each hose's position, and clean the old gasket off the mating surfaces.
  4. 4Fit the new part. Use the new gasket or O-ring, tighten bolts evenly to your manual's values and refit hoses with their clamps.
  5. 5Refill and bleed. Refill with the coolant your manual specifies, run the engine with the heater on full to purge air, top up, and check for leaks once cool.

This is general guidance for the part type, not a model-specific procedure. If the part does not fit without force, stop and recheck compatibility.

More parts for Chevrolet Cruze

See all Chevrolet Cruze parts
Engine Oil Cooler Assembly compatible with Chevrolet Aveo, Cruze; Pontiac G3FP-069BCB
Fits 3 models
For Chevrolet Aveo, Cruze; Pontiac G3
Engine Oil Cooler Assembly G3
$93.99
Engine Oil Pump compatible with Buick Encore 1.4L; Chevrolet Cruze, TraxFP-3AE57E
Fits 3 models
For Buick Encore 1.4L; Chevrolet Cruze, Trax
Engine Oil Pump 1.4L;
$257.99
TPMS Tire Pressure Sensor compatible with Buick Envision; Cadillac CT6; Chevrolet Bolt, Cruze, Malibu, Spark, Tahoe; GMC SierraFP-3EF6E5
Fits 8 models
For Buick Envision; Cadillac CT6; Chevrolet Bolt, Cruze
TPMS Tire Pressure Sensor CT6;
$58.99
Cylinder Head Assembly with Camshaft compatible with Buick Encore 1.4L; Chevrolet Cruze, Sonic, TraxFP-472D40
Fits 4 models
For Buick Encore 1.4L; Chevrolet Cruze, Sonic
Cylinder Head Assembly with Camshaft 1.4L;
$998.99
Dual Iridium Spark Plug compatible with Chevrolet Cruze, Malibu; Ford C-Max, Fiesta; MG 5, 6, GS, GT, HS, RX5, ZSFP-4FBC71×4
Fits 11 models
For Chevrolet Cruze, Malibu; Ford C-Max
Dual Iridium Spark Plug 5, 6, RX5
$93.99
Front Left Window Lifter Motor compatible with Chevrolet Cruze 2009-2014FP-8334A2×1
For Chevrolet Cruze 2009-2014
Front Left Window Lifter Motor 2009-2014
$43.99
Rear Right Power Window Motor compatible with Chevrolet Cruze 2009-2014FP-9492EA×1
For Chevrolet Cruze 2009-2014
Rear Right Power Window Motor 2009-2014
$82.99
Cabin Filter compatible with Buick Excelle, GL8; Cadillac ATS, CT4, XT4; Chevrolet Camaro, Cruze; Opel Meriva BFP-9A53E5
Fits 8 models
For Buick Excelle, GL8; Cadillac ATS
Cabin Filter GL8;, CT4, XT4;
$88.99
315MHZ TPMS Sensor compatible with Chevrolet Cruze, EquinoxFP-9D3D96
Fits 2 models
For Chevrolet Cruze, Equinox
TPMS Sensor 315MHZ
$32.99
Power Window Lift Motor compatible with Chevrolet CruzeFP-AA6DD9
For Chevrolet Cruze
Power Window Lift Motor
$82.99
Power Window Lift Motor compatible with Chevrolet CruzeFP-BAAA5A×1
For Chevrolet Cruze
Power Window Lift Motor
$82.99
Rear Left Window Lift Motor compatible with Chevrolet Cruze 2009-2014FP-D042AC×1
For Chevrolet Cruze 2009-2014
Rear Left Window Lift Motor 2009-2014
$82.99
Fuel Pump Module Assembly compatible with Chevrolet Cruze; Opel Astra GTC, InsigniaFP-D335BC
Fits 3 models
For Chevrolet Cruze; Opel Astra GTC, Insignia
Fuel Pump Module Assembly
$369.99

12 month warranty on every part

Every part we sell is covered for 12 months from delivery. If it fails in normal use, we replace it or refund you , claim it straight from your order page.

Warranty & returns policy

Customer reviews

No reviews yet

Bought this part? Be the first to share how it fit and how it held up.

Questions & answers

+Which models does this intercooler charge air cooler fit?

Our team verified it for Chevrolet Cruze. The full list is in the compatibility table above.

+Which model years does it fit?

Verified for model years 2016–2019. Check the year of your vehicle in the table above.

+How do I make sure it fits my exact model?

Find the model number on your vehicle registration or VIN and compare it with the table above. Our fit guarantee covers verified models.

+What is the intercooler charge air cooler made of?

Listed material: Aluminum / Plastic.

+How much does it weigh?

Listed weight: 3.73kg.

+Is it hard to install?

Install difficulty: Advanced · mechanical experience needed. Step by step instructions are on this page.

+How fast will it arrive?

This part is in stock in the USA: delivery within 3 to 8 business days, free shipping in the US.

+Is there a warranty?

Yes, a 12-month warranty is included, and you can extend it at checkout. Returns are accepted within 30 days.
